Product Details:
|
| Item Name: | Bagged Liquid Filling Machine | Model: | JGS-81- |
|---|---|---|---|
| Filling Speed: | 400-600bags/hour | Material: | Stainless Steel |
| High Light: | automatic shrink wrapper,beer filling machine |
||

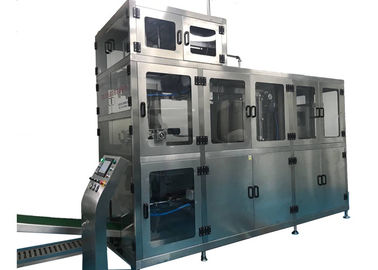

Bagged Liquid Packing Machine JGS-810 Automatic 5Liter to 12Liter Bagged Water Filling
Working Process:
Film Loading→Filing Pulling→Semi-auto Film Connecting →Ultrasonic Film Cleaning→Film Wash by High density water-knife→Film Wash by Pure Water→ Film drying by Air-knife→Film Static Elimination→UV sterilizer (sealed room)→Film Position Correction→Bag Shaping→Bag Vertical Sealing→Automatic Variable Frequency Filling→Bag Extrusion, Exhaust Air Inside the bag→Bag Horizontal Sealing→Bag Cutting→Filled Water Bag Conveying→Leakage Detection (roller extrusion leakage detect)→Lamp Inspector→Outer Bag Sealing and Date Printing)
| Power Supply | 3phases,AC380V/50Hz |
| Applicable material of packing film | PE/PA/PE, PET/PE |
| Applicable thickness of packing film | 0.07-0.12mm |
| Max. width of packing film | 810mm |
| Product bag size | 5Liter-12Liter |
| Filling speed | 400-600bags/hour(based on 7.5L bag) |
| Machine weight | 2200kg |
| Total Power | 4.8KW |
| Air source pressure | >0.8MPa |
