6000BPH Bottled Water Filling Line , Stainless Steel 3 In 1 Water Filling Machine

China 6000BPH Bottled Water Filling Line , Stainless Steel 3 In 1 Water Filling Machine supplier
6000BPH Bottled Water Filling Line , Stainless Steel 3 In 1 Water Filling Machine supplier

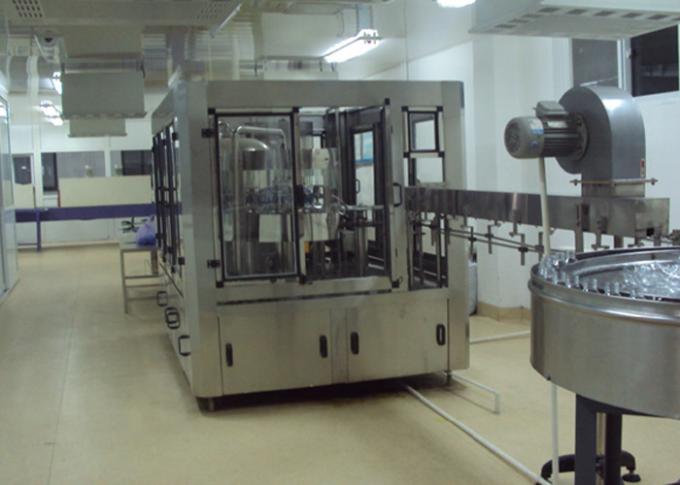

Large Image :  6000BPH Bottled Water Filling Line , Stainless Steel 3 In 1 Water Filling Machine

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: negotiated
Price: negotiated
Contact Now
Detailed Product Description
Item Name: Water Filling Machine Material: Stainless Steel
Filling Speed: 6000BPH (0.5L Bottle) Function: Bottle Rinsing,filling And Capping
High Light:

sleeve labeling machine

,

beer filling machine





6000BPH ( 0.5L ) Bottled Water Filling Line 3in1 Water Filling Machine CGF18-18-6







3in1 Still Water Filling Machine. Bottle rinser, filler and capper.





Description

  • The machine has compact structure, complete control system, easy operation and high degree of automation
  • To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate
  • The parts contacting media are made from 304 SUS and have no process blind angles to enable easy cleaning
  • High speed filling valve, guarantees liquid has precise level and no waste is incurred
  • The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap
  • The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting
  • The machine applies a highly effective cap arranging system that has complete self control and protective device
  • The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively
  • Main electric components and pneumatic components apply world famous brand products
  • The machine's operation is controlled by an advanced touch-screen that can fulfill human-machine communication.



overall dimension(including rinser) 2250X1800X2550mm
weight 3000KG
working voltage 380V (AC)
control voltage 24V(DC)
installed capacity 2.2KW
Screw cap head 6
Rated capacity (500ml bottle) 6000BPH for 0.50L bottle
2500BPH for 1.5L bottle
Suitable for bottle height of bottle 160~320mm
Bottleneck Φ50~Φ95mm
Rinser heads 18
Filling Heads 18
