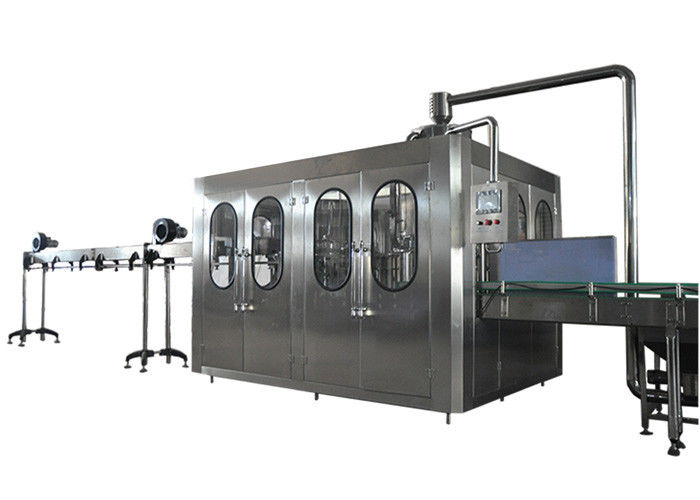

PLC Control Bottled Water Filling Line With Automatic Cap Lifting System

China PLC Control Bottled Water Filling Line With Automatic Cap Lifting System supplier
PLC Control Bottled Water Filling Line With Automatic Cap Lifting System supplier

Large Image :  PLC Control Bottled Water Filling Line With Automatic Cap Lifting System

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: CGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: negotiated
Price: negotiated
Contact Now
Detailed Product Description
Item Name: Water Filling Machine Material: Stainless Steel
Filling Speed: 10000BPH (0.5L Bottle) Function: Bottle Rinsing,filling And Capping
High Light:

automatic shrink wrapper

,

beer filling machine





10000BPH ( 0.5L ) Bottled Water Filling Line 3in1 Water Filling Machine CGF32-32-10





3in1 Still Water Filling Machine. Bottle rinser, filler and capper.



Features

  • Most advanced technology from Japan and Germany is employed in the design.Gravity filling.
  • PLC control.
  • Stepless speed regulation.
  • High quality stainless steel 304 of machine frame, 316 of water direct contact parts in water filling valve.
  • Automatic cap lifting system and air blowing bottled feeding system.
  • Intelligent detect system. Water filling stops against bottle shortage or water shortage.



Rinser heads 32
Filling Heads 32
Screw cap head 10
Rated capacity (500ml bottle) 10000-12000BPH for 0.50L bottle
Suitable bottle height of bottle 160~320mm
Bottleneck Φ50~Φ95mm
Suitable of cap plastic screw cap
Filling temperature 2℃ ~ 8℃
Filling pressure 0.25-0.4 Mpa
Air consumption rate 0.4 m3/h
Washing water consumption rate 1.5 m3/h
control voltage 24V(DC)
Main power 6KW
overall dimension(including rinser) L3200*W2200*H2500mm
weight 5500kg



PLC Control Bottled Water Filling Line With Automatic Cap Lifting System 0
