Product Details:
|
| Product Name: | Hot And Cold Water Dispenser | Application: | In Office |
|---|---|---|---|
| Water Cooling Capacity: | 2L/H (<10degC) | Water Treatment Capacity: | 50gallon Per Day |
| Water Treatment Type: | RO Pure Water System | Brand: | OEM |
| High Light: | 90W POU Water Dispenser,Compressor Cool POU Water Dispenser,SS304 RO Cool Water Dispenser |
||

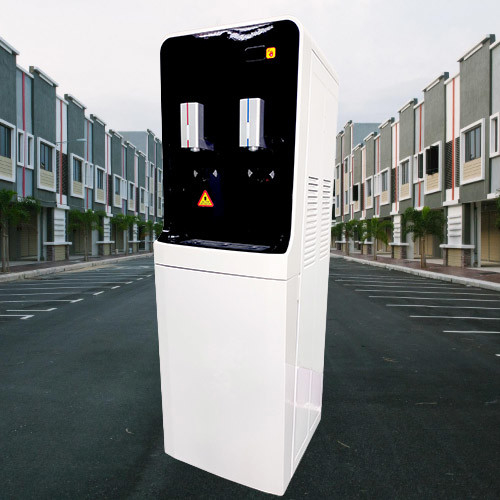

Hot And Cold POU Water Dispenser 106L-ROGS Aqua Cool Water Dispenser With Compressor Cooling System
How does compressor cooling system work?
When the cooling switch is pressed, the green indicator light is on, the compressor starts to run, and the refrigerant vapor that has absorbed heat and vaporized in the evaporator is sucked back, and then compressed into high temperature and high pressure gas, and sent to condensation The condenser dissipates heat to the outside air and condenses into a high-pressure liquid, and then flows into the evaporator through capillary throttling and pressure reduction, absorbing the heat of the cold bladder to reduce the water temperature, and then being sucked back by the compressor. This cycle achieves the purpose of cooling down. When the water temperature drops to the set temperature with time, the cooling thermostat contacts are disconnected, the green indicator light goes out, the compressor stops, and it switches to the heat preservation mode. After the power is off, the water temperature gradually rises. When it reaches the set temperature, the contact action of the refrigeration thermostat is closed, the green indicator light is on when the power is turned on, and the compressor is running. In this way, the water temperature is controlled between 4-12°C.
How does the water heating system work?
Press the heating switch, the heating circuit is turned on, the red heating indicator light is on, and the electric heating tube heats up. When the temperature is specified by us, the thermostat will automatically reset and the power supply will be cut off. After the power is off, the water temperature gradually drops. When it drops to the set temperature, the thermostat contact action closes, the power is turned on, the red heating indicator light is on, and the electric heating tube heats up again. In this way, the water temperature is controlled between 85-95°C.
Specifications of the cooling capacity of 106L-ROGS
| Cold Water | Cooling Power | 80-90W |
| Cold Water Supply | 2L/H (≤ 10℃) | |
| Cold Water Tank | 3L, SS304,streched, electrolysis treated. | |
| Compressor | HUAYI B25H | |
| Cold-Producing Medium | R134a/40g |
| Hot Water | Heating Power | 500W |
| Hot Water Supply | 5L/H (≥ 90℃) | |
| Hot Water Tank | 1.1L, SS304,welded internal heating |
