100BPH 5 Gallon Water Bottling Line With Bottle Rinser / Filler / Capper

China 100BPH 5 Gallon Water Bottling Line With Bottle Rinser / Filler / Capper supplier
100BPH 5 Gallon Water Bottling Line With Bottle Rinser / Filler / Capper supplier

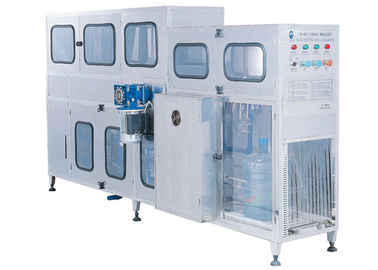

Large Image :  100BPH 5 Gallon Water Bottling Line With Bottle Rinser / Filler / Capper

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: XGJ-100BPH

Payment & Shipping Terms:

Minimum Order Quantity: negotiated
Price: negotiated
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Production Capacity: 100BPH
Filling Method: Gravity Filling Mode: Automatic
High Light:

water bottling machine

,

bottle washing machine





100BPH 5gallon Water Bottling Line 3in1 Water Bottling Machine ( Bottle Rinser , Filler , and Capper)





Function & Features



This machine is divided into five parts as below:

  • Rinsing/washing (washing inside): this part consist of carrying bottle, bottle holder, photo eye sensor, pushing bottle and washing pump
  • Filling: this part consists of pushing bottle air ram, rotating bottle air ram, filling tap, capping, and pure water pump.
  • Capping: this part consists of sealing the caps.
  • Electricity controlling: this part consists of plc.(imported from lg of korea)
  • Air controlling: this part consists of air ram, air solenoid valve. Etc



Model XG-100/J (100~150BPH)
Process Rinser + Filler +Capper 3 in 1 style
Power supply

AC 220V±5% 50Hz 1phase

AC 380V±5% 50Hz 3phases (optional)

Input Power 3.5 KW
Bottle's spec. φ270×490×φ56mm (5gallon)
Cap's spec. φ58×40mm
Pressure of compress air ≥0.6MPa
Bottle Washing capacity 100~150Buckets/Hour
Bottle filling capacity 100~150Buckets/Hour
Requirement of air compressor 0.17 M³/Min; 0.7Mpa/Cm²
Requirement of water supply 3.5M³/H
Dimension (L*W*H) 3280x700x1600mm
Wooden Packing size(L*W*H) 3550x1100x1700mm
G.W./N.W. 300/250KGS



 100BPH 5 Gallon Water Bottling Line With Bottle Rinser / Filler / Capper 0
